Advanced Plastic Dryers and Dehumidifiers for Superior Processing
In the demanding plastics processing sector, precise control over each production stage is critical for consistent high-quality output. Among these essential steps, the effective drying of plastic materials is paramount. Excessive moisture in plastic resin can cause various issues, including surface imperfections and diminished structural integrity in molded products, as well as inefficiencies in processing. As leading manufacturers of hopper dryers, dehumidifying dryers, and dehumidifier dryer systems, TOPDA is committed to delivering innovative solutions that ensure perfectly dry plastic materials for your plastic manufacturing operations.
Our cutting-edge plastic dryer and dehumidifier technologies, featuring sophisticated honeycomb dehumidifier units, are engineered to address even the most challenging moisture removal requirements. By selecting TOPDA, you are not simply acquiring machinery; you are investing in reliability, efficiency, and the consistent production of high-quality plastic components. We understand the specific needs of plastic film extruders and plastic bottle producers, and our dryer machine solutions are precisely tailored to meet those demands. Contact us today to explore how our expertise can enhance your production processes and guarantee the highest standards for your final products.
Ensuring Optimal Quality with Advanced Dehumidifying Dryer Systems

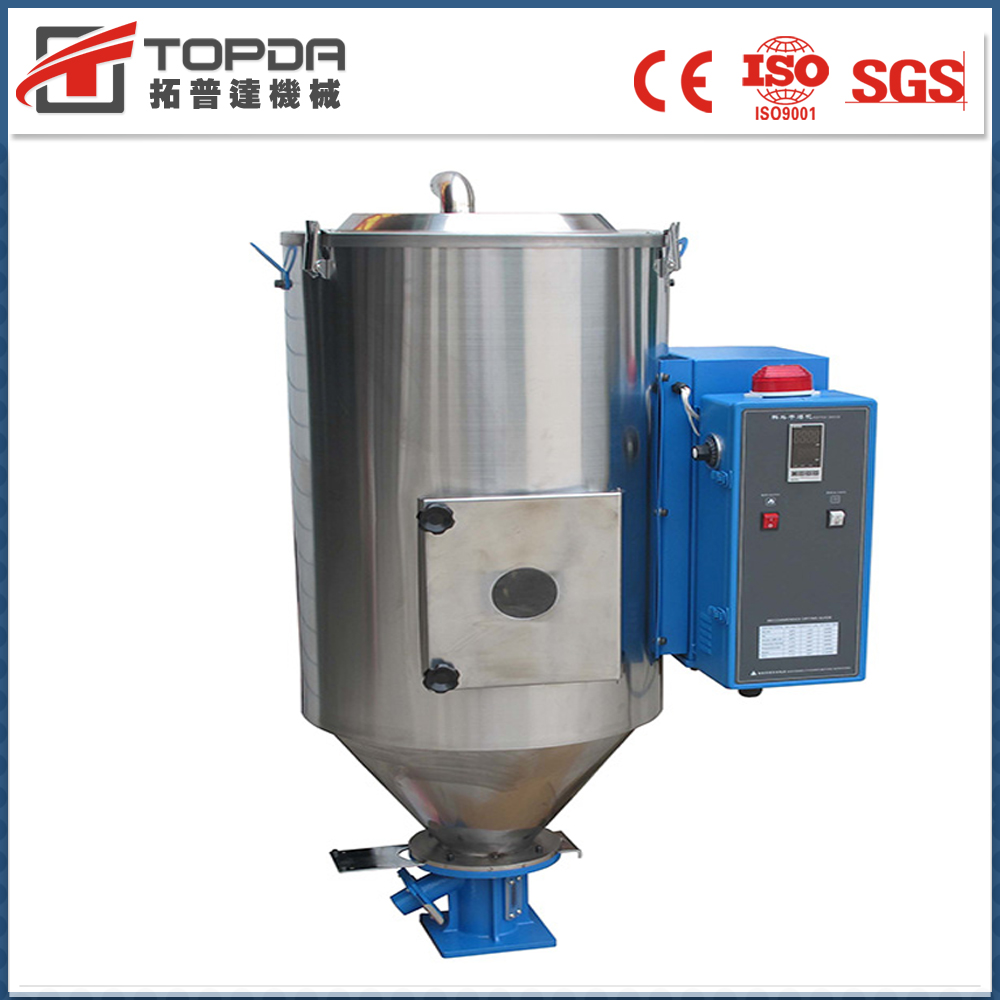

TOPDA European Dehumidifier Hopper Dryers Features:
1）Adopts P.I.D temperature control for accurate temperature control .
2）Unique design of down blow air pipe can spread hot air evenly, keeping plastics dry and temperature stable to raise drying efficiency.
3）All drying hoppers are completely insulated and provided with sight glasses.
4）Larger hoppers are provided with a cleaning door to ensure optimum access.
5）Overheat protection to ensure reliable operation.
6）Beautiful appearance.
Dehumidifying Dryer Specification :
Hopper Capacity (L) | Drying Heater (kw) | Blower Power (kw) | Dimension (mm) (H×W×D) | Floor Stand (mm) (H×W×D) | Height (mm) H2 | Air Inlet Pipe (inch) | Air Outlet Pipe (inch) | Weight (kg) | |
GHD-20U | 20 | 2.2 | 0.05 | 730×575×325 | 790×450×660 | 1260 | 2 | 1.5 | 40 |
GHD-40U | 40 | 3 | 0.12 | 760×640×390 | 790×450×660 | 1295 | 45 | ||
GHD-80U | 80 | 3.9 | 0.12 | 940×722×475 | 840×552×722 | 1465 | 2.5 | 2 | 50 |
GHD-120U | 120 | 3.9 | 0.12 | 1210×722×475 | 840×552×722 | 1735 | 60 | ||
GHD-160U | 160 | 6 | 0.12 | 1225×822×575 | 920×652×795 | 1825 | 3 | 2.5 | 90 |
GHD-230U | 230 | 6 | 0.12 | 1505×822×575 | 920×652×795 | 2105 | 100 | ||
GHD-300U | 300 | 12 | 0.18 | 1450×945×695 | 970×790×930 | 2085 | 130 | ||
GHD-450U | 450 | 12 | 0.18 | 1850×945×695 | 970×790×930 | 2435 | 160 | ||
GHD-600U | 600 | 18 | 0.55 | 1820×1170×915 | 1130×1000×1200 | 2470 | 4 | 3 | 200 |
GHD-750U | 750 | 18 | 0.55 | 2100×1170×915 | 1130×1000×1200 | 2780 | 220 | ||
GHD-900U | 900 | 18 | 0.55 | 2070×1340×1050 | 1320×1200×1200 | 2730 | 4 | 4 | 410 |
GHD-1200U | 1200 | 24 | 1.1 | 2500×1340×1050 | 1320×1200×1200 | 3160 | 560 | ||
GHD1500U | 1500 | 32 | 3 | 2950×1542×1250 | 1400×1500×1500 | 3470 | 5 | 5 | 685 |
GHD-2000U | 2000 | 32 | 3 | 3350×1542×1250 | 1400×1500×1500 | 3870 | 770 | ||
GHD-2500U | 2500 | 58 | 5.5 | 3510×1770×1400 | 1500×1640×1640 | 4050 | 6 | 6 | 800 |
GHD-3000U | 3000 | 58 | 5.5 | 3910×1770×1400 | 1500×1640×1640 | 4400 | 900 | ||
GHD-3500U | 3500 | 64 | 7.5 | 4310×1770×1400 | 1500×1640×1640 | 4800 | 1000 | ||
GHD-4000U | 4000 | 64 | 7.5 | 4050×1980×1600 | 1650×1900×1900 | 4550 | 1160 | ||
GHD-4500U | 4500 | 80 | 11 | 4350×1980×1600 | 1650×1900×1900 | 4850 | 1260 |
Note:
1) For polished hopper inside, plus “P ” at model behind.
2) Blower is included in machine net weight, but floor stand is not included.
3) Power supply: 3Φ, 230 / 400 / 460 / 575V, 50 / 60Hz.
Energy efficiency is key in modern manufacturing. Our hopper dryers are designed to minimize energy consumption while ensuring effective plastic drying, leading to significant cost savings for high-volume producers like plastic bottle manufacturers. Choose our energy-saving solutions for optimal performance and reduced operational expenses.
